Twinstar G3 Hay Rake – 7-Bar

US Patent #10,448,573

The Twinstar Generation 3 Basket Rake is the premier hay rake designed for commercial farming operations. This rugged built hay rakes is designed to rake two windrows together and for turning hay to speedup drying time prior to baling for high production hay farming, custom operators, dairies raking green chop and raking bio feed stocks. Twinstar Basket Rakes produce consistent uniform windrows and the cleanest hay on the market. Cleaner hay brings higher returns and provides the highest quality feed to ensure animals receive proper nutrients. Research has documented that basket raked hay contains significantly less contaminants (dirt, rocks, and debris) and has less leaf loss compared to traditional finger wheel and rotary rakes. Twinstar Generation 3 Hay Rakes are designed for functionality and longevity in today’s demanding markets. Twinstar 7-Bar Rakes are available in 27′ & 30′ approximate raking widths for windrowers equipped with 12′ to 18′ headers.

FEATURE	MODEL 2027G3-7	MODEL 2030G3-7
Slide Tubes	Double Pair	Double Pair
Maximum Raking Width	Up to 27′	Up to 30′
Transport Width	10′ – 9″	10′ – 9″
Overall Length	19′ – 5″	20′ – 2″
Approximate Weight	5100 lbs.	5600 lbs.
Tire Size	(4) LT235/75R15	(4) LT235/75R15

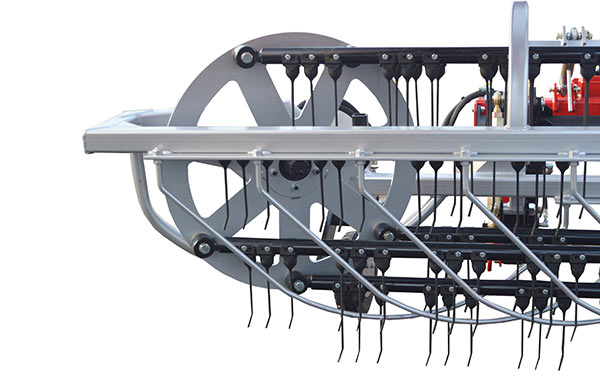

Rubber Mounted Tines	Standard: 154 per basket Optional: 224 per basket	Standard: 175 per basket Optional: 259 per basket
Basket Reel Speed	Maximum 90 RPM	Maximum 90 RPM
Tine Bar Bearings	Precision Sealed ball bearings	Precision Sealed ball bearings
Hydraulic Requirement	14 gallons/minute @ 2000 PSI Tractor with single hydraulic remotes	14 gallons/minute @ 2000 PSI Tractor with single hydraulic remotes
Operating Speed	Up to 10 MPH	Up to 10 MPH
